UNIVERSAL TC

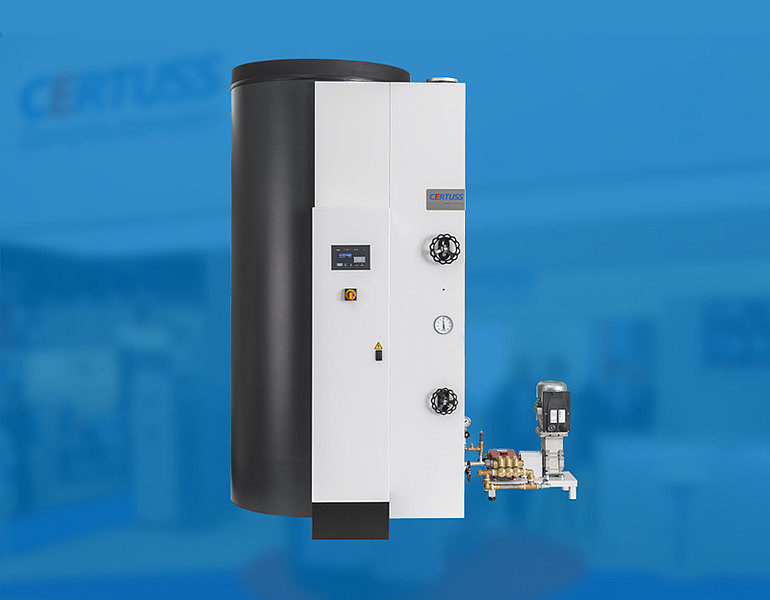

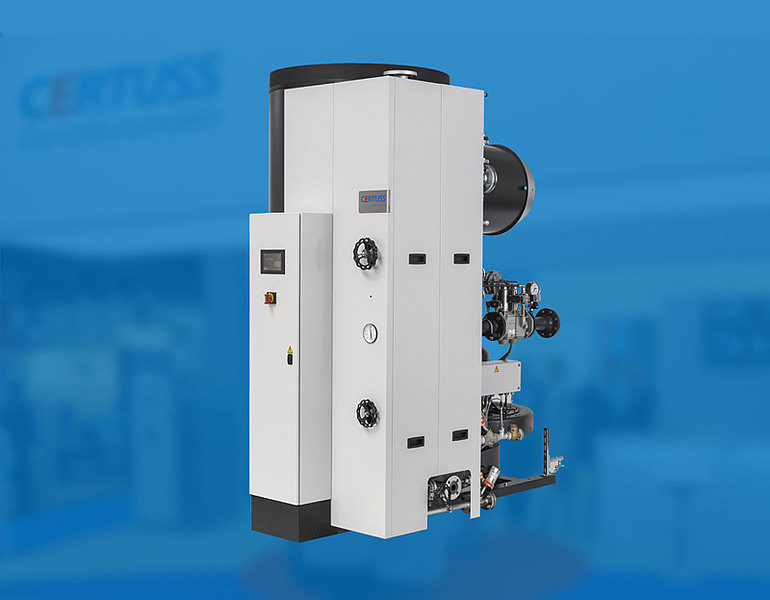

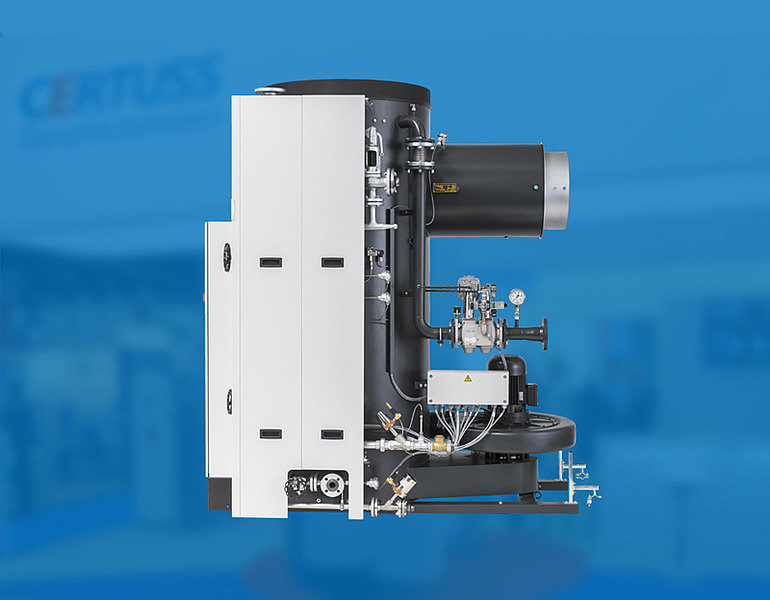

The Universal TC series is our most high performing steam solution. We offer various fuel types, including LPG, natural gas, #2 oil or a dual fuel burner for natural gas and #2 oil. The TC Generators are equipped to serve constant, as well as fluctuating, high steam demands. The touch screen control facilitates operation and gives a bundled overview of current pressures and configurations. All our Generators offer short heat up times and remote operation.

Frame Size 4 5 6 7
Capacities Steam output (kg/h) 500 – 650 700 – 850 1000 – 1300 1500 – 1800 – 2000
Heat Output kW 328 – 427 459 – 557 656 – 853 984 – 1180 – 1320
Heat Input kW 364 – 485 510 – 619 728 – 947 1093 – 1311 – 1457
Pressures Max. WP BarG 8-14-18-22-29 8-14-22-29 8-14-22-29 8-14-22-29
Max. AP BarG 10-16-20-25-32 10-16-25-32 10-16-25-32 10-16-25-32
Measurements (mm) Height / Width / Depth 1980 / 930 / 1600 2290 / 1160 / 1870 2535 / 1260 / 2125 2675 / 1380 / 2310
The functional principle

By using the water tube boiler principle, the CERTUSS technology for generating steam offers maximum safety, reliability and instant availability of high quality steam.

  • The touch screen control panel simplifies operation and control of the generator. All configurations and settings of steam pressure are made here.
  • The pre-heated feed water is delivered to the Generator at approx. 85°C to 96.11°C. The heat frees the oxygen from water and reduces the risk of oxygen corrosion.
  • The heat exchanger coil is supplied with water through the feed water inlet. The change of phase from water to steam begins.
  • The modulating, integral burner with the fastest response time, provides precise steam pressure control down to 0.01 BAR G.
  • Insulation material is made obsolete by guiding the combustion air from the top of the Generator through an outer shell, and from there into an inner, secondary shell.
  • The combustion air intake & fan draw in warm air through the triplex system to preheat the combustion air and keep the outer jacket cool.
  • When the steam has been produced, it leaves the generator through the steam outlet and is then ready for use.
  • The flue gas outlet connects to the chimney with or without an Economizer.
  • Sediment is flushed out through the coil blow-down valve. The safety relief valve opens automatically to discharge excess steam when the pressure is too high.
Advantages
  • Start-up time of 3-5 minutes with steam available
  • Thermal Efficiency of up to 98% with CERTECON Economizer
  • Space saving
  • No boiler housing required
  • 92% to 94% thermal efficiency
  • Reduction of piping costs due to decentralized plants
  • Reduced corrosion due to vertical orientation
  • Small ecological footprint
  • Silent operation
  • Anti vibration mountings preventing any vibration
  • Operation without operator
  • Delivery including CVE kit for an easy start
  • Redundancy with multiple plant solution
  • Less water & less hazardous potential
  • Fully adjustable output of steam
  • Ambient outside temperatur due to triplex shell cooling
  • Predictive maintenance: informing of potential issues before they occur
  • Fully automated
  • Minimal and easy maintenance with spare parts available up to 20 years
  • Around the clock aftersales support
  • 7” Touchscreen display
  • Remote access via Ethernet, Wifi or GSM
  • Remote maintenance and control possible with iPad or iPhone
  • Low emissions
  • Less pollution through low water drainage
