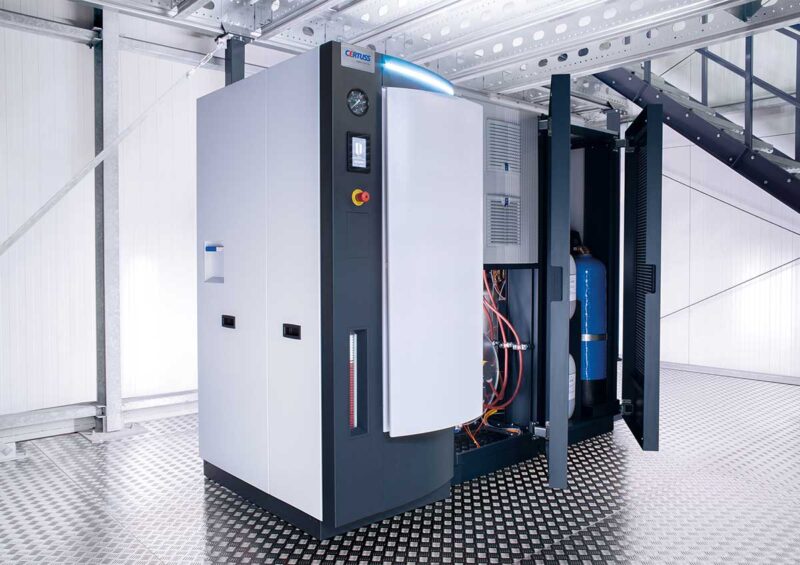

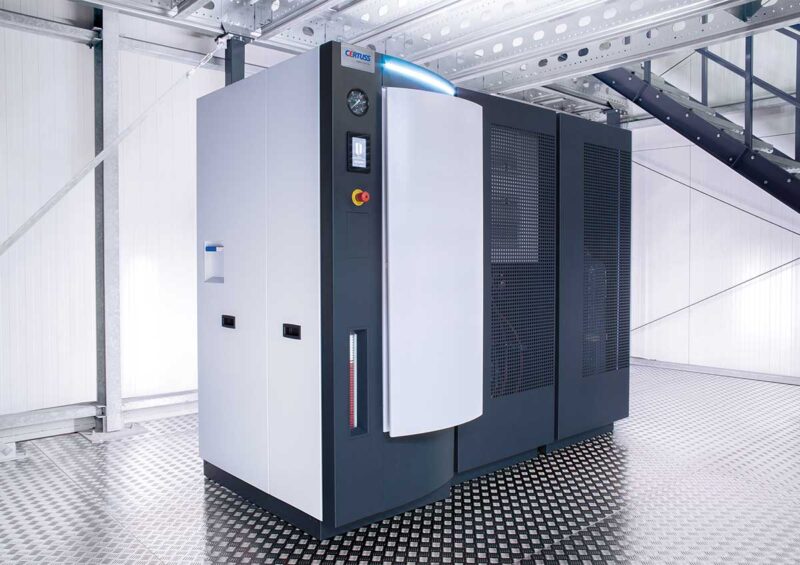

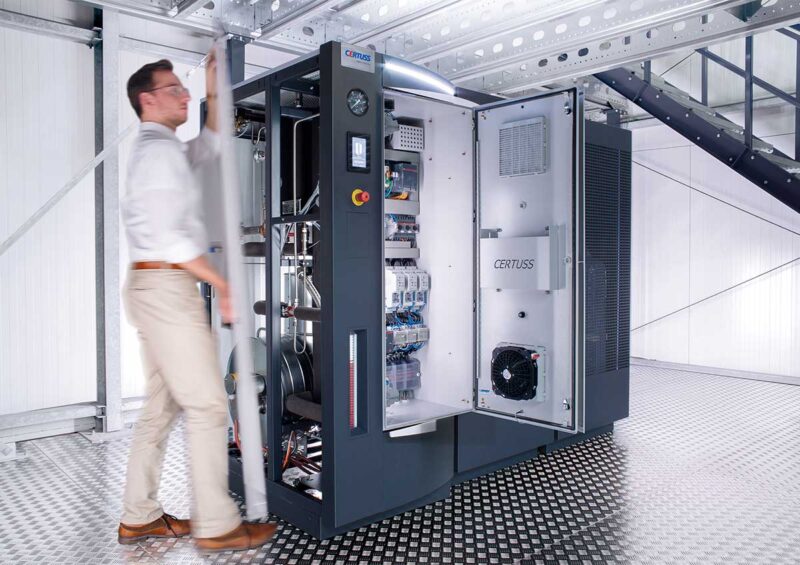

ELECTRIC STEAM GENERATOR - EMX

The new GENERATION E comes in eleven sizes with regard to output. The steam generator is ready for use 3–5 minutes after starting up the system and the equipment design guarantees continuous regulation of the steam output from 0 TO 320 KG/H. Each module can be expanded up to an output of 160 KG/H. Modular design enables the greatest variety because the modules can be arranged as desired.

The new HUMAN-MACHINE INTERFACE guarantees easy, intuitive control in 16 languages. When steam demand varies, the technology enables intelligent pressure adjustment and reduces consumption. It also allows for CONDITION MONITORING and REMOTE SERVICES and meets all of the requirements for Industry 4.0.

EMX
Electrical power control voltage 230 VAC (option MX-CPA) (kW) 0,25
Electrical power cooling unit (kW) 0,95 1,45
Electrial power feed water heating (kW) 9 / 18
Operating voltage 380-480 V · 50/60 Hz
MODEL/STEAM OUTPUT (kg/h) 10 20 40 60 80 100 130 160 200 260 320
Heat output (kW) 8 16 32 48 67 80 107 120 160 200 240
Electrical power (kW) 8,7 16,7 32,7 48,7 67,7 80,7 107,7 120,7 160,7 200,7 240,7

Interested in CERTUSS Steam?

Please find one of our numerous local and regional consultants and engineers to discuss your Steam project!
